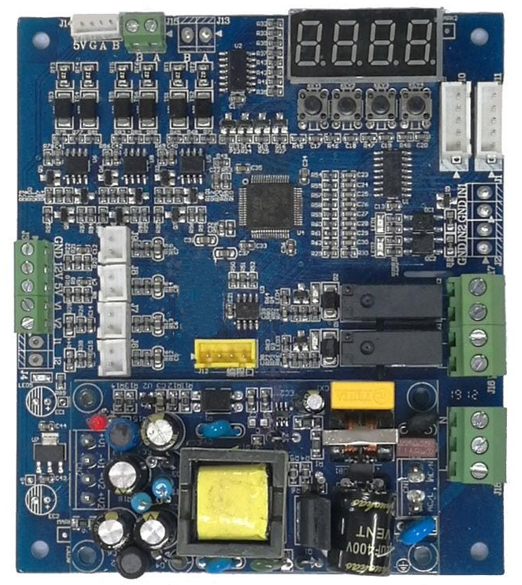

HP11 Double Unipolar EEV Controller
| Specifications | |
|---|---|
| Standards | IEC 61000-4-11-2004, IEC61000-4-5-2014, IEC 61000-4-4-2004, IEC 61000-4-2-2001 |
| Working voltage | 110V or 220V AC |
| Frequency | 50/60HZ |
| Working temperature | -20°C~70°C, ≤ 85% RH non-condensing |
| Storage temperature | -30°C~85°C, ≤ 85% RH non-condensing |
| Protection rating | IP00 (bare board) |
| Dimensions | 101.6mm*117.86mm |
Product Overview
| Product model | HP | |
|---|---|---|
| Hardware | Quantity | Specifications |
| Switch input | 2 | One passive switch input |
| Temperature sensor input | 4 | 25°C 10K NTC sensor |
| Relay output | 2 | 2 relay input (Dry contact) |
| EEV output | 2 | 12V 300mA unipolar EEV |
| Communication interface | 3 | RS485 communication, Modbus RTU communication protocol |
