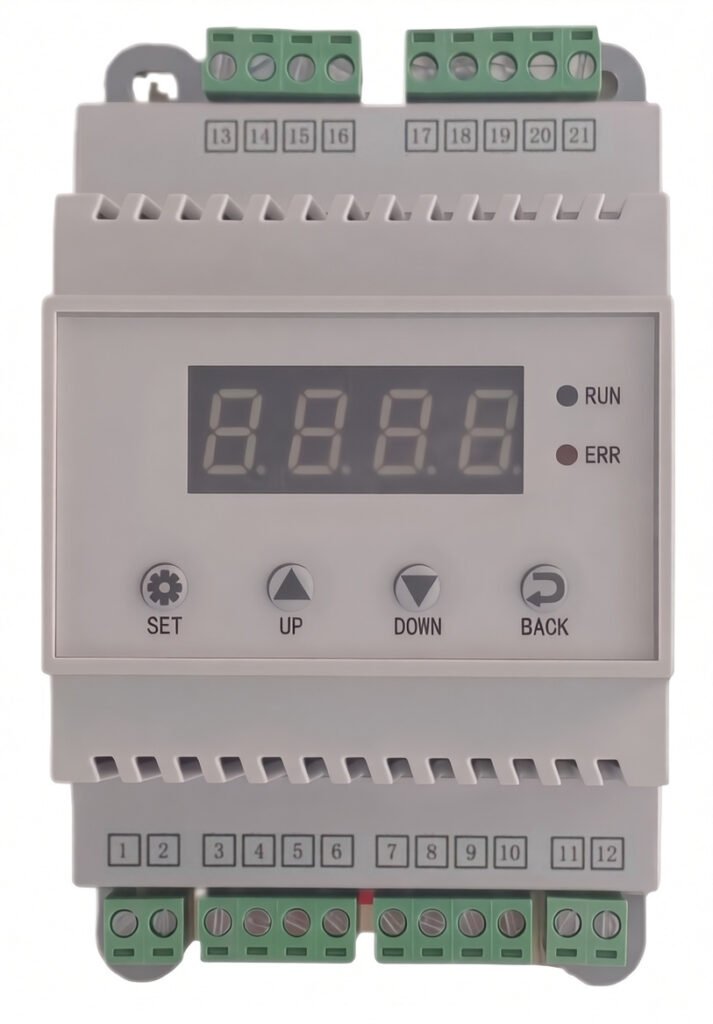

EV06 Biopolar EEV Driver
| Specifications | |
|---|---|
| Standards | IEC 61000-4-11-2004, IEC61000-4-5-2014, IEC 61000-4-4-2004, IEC 61000-4-2-2001 |
| Working voltage | 24V DC |
| Working temperature | -20°C~70°C, ≤ 85% RH non-condensing |
| Storage temperature | -30°C~85°C, ≤ 85% RH non-condensing |
| Protection rating | IP00 (bare board) |
| External dimensions | 132mm*77mm*55mm |
Product Overview
| Product model | EV06 | |
|---|---|---|
| Hardware | Quantity | Specifications |
| Switch input | 2 | Passive switch input |
| Analog output | 2 | 0-5V signal input or 4-20mA signal input |
| Relay output | 1 | 1 relay input (Dry contact) 220V 5A |
| EEV output | 2 | 1000mA Bipolar EEV (4-wired type Current Drive) |
| Communication interface | 1 | RS485 communication, Modbus RTU communication protocol |
