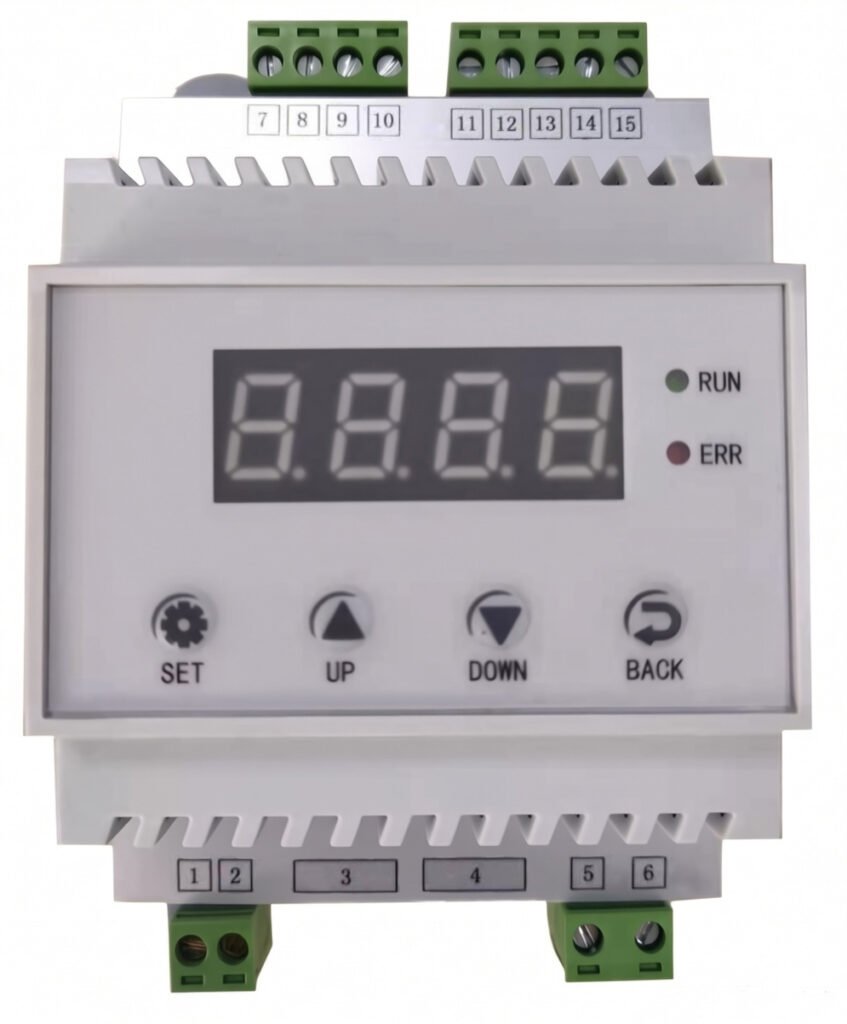

EV03/EV04 Unipolar EEV Driver
| Specifications | |
|---|---|
| Standards | IEC 61000-4-11-2004, IEC61000-4-5-2014, IEC 61000-4-4-2004, IEC 61000-4-2-2001) |
| Working voltage | 24V DC |
| Working temperature | -20°C~70°C, ≤ 85% RH non-condensing |
| Storage temperature | -30°C~85°C, ≤ 85% RH non-condensing |
| Protection rating | IP00 (bare board) |
| External dimensions | 132mm*77mm*57mm |
Product Overview
| Product model | EV03 | EV04 | |
|---|---|---|---|
| Hardware | Quantity | Specifications | |
| Switch input | 2 | None | Passive switch input |
| Analog output | 2 | 3 | 0-5V signal input or 4-20mA signal input |
| Relay output | 1 | None | 1 relay input (Dry contact) |
| EEV output | 2 | 3 | 12V 300mA Unipolar EEV (5-wire type) |
| Communication interface | 1 | 1 | RS485 communication, Modbus RTU communication protocol |
